OpenDJ Access Control Explained

Bill Nelson Mar 19, 2015 3:04:58 PM

An OpenDJ implementation will contain certain data that you would like to explicitly grant or deny access to.  Personally identifiable information (PII) such as a user’s home telephone number, their address, birth date, or simply their email address might be required by certain team members or applications, but it might be a good idea to keep this type of information private from others. On the other hand, you may want their office phone number published for everyone within the company to see but limit access to this data outside of the company.

Controlling users’ access to different types of information forms the basis of access control in OpenDJ and consists of the following two stages:

  • Authentication (AuthN) – the process of positively identifying a subject
  • Authorization (AuthZ) – the process of determining the rights that a subject has on a particular resource

Before you are allowed to perform any action within OpenDJ, it must first know who you are.  Once your identity has been established, OpenDJ can then ascertain the rights you have to perform actions either on the data contained in its database(s) or within the OpenDJ process, itself.



Stop

Access Control = Authentication + Authorization

Note:  Access control is not defined in any of the LDAP RFCs so the manner in which directory servers implement access control varies from vendor to vendor.  Many directory services (including OpenDJ) follow the LDAP v3 syntax introduced by Netscape.

Access control is implemented with an operational attribute called aci (which stands for access control instruction).  Access control instructions can be configured globally (the entire OpenDJ instance) or added to specific directory entries.

1.      Global ACIs:

Global ACIs are not associated with directory entries and therefore are not available when searching against a typical OpenDJ suffix (such as dc=example,dc=com).  Instead, Global ACIs are considered configuration objects and may be found in the configuration suffix (cn=config).  You can find the currently configured Global ACIs by opening the config.ldif file and locating the entry for the “Access Control Handler”.  Or, you can search for “cn=Access Control Handler” in the configuration suffix (cn=config) as follows:

./ldapsearch –h hostname –p portnumber –D “cn=directory manager” –w “password” -b “cn=config” -s sub “cn=Access Control Handler” ds-cfg-global-aci

This returns the following results on a freshly installed (unchanged) OpenDJ server.

dn: cn=Access Control Handler,cn=config

ds-cfg-global-aci: (extop=”1.3.6.1.4.1.26027.1.6.1 || 1.3.6.1.4.1.26027.1.6.3 || 1.3.6.1.4.1.4203.1.11.1 || 1.3.6.1.4.1.1466.20037 || 1.3.6.1.4.1.4203.1.11.3″) (version 3.0; acl “Anonymous extended operation access”; allow(read) userdn=”ldap:///anyone”;)

ds-cfg-global-aci: (target=”ldap:///”)(targetscope=”base”)(targetattr=”objectClass||namingContexts||supportedAuthPasswordSchemes||supportedControl||supportedExtension||supportedFeatures||supportedLDAPVersion||supportedSASLMechanisms||supportedTLSCiphers||supportedTLSProtocols||vendorName||vendorVersion”)(version 3.0; acl “User-Visible Root DSE Operational Attributes”; allow (read,search,compare) userdn=”ldap:///anyone”;)

ds-cfg-global-aci: target=”ldap:///cn=schema”)(targetattr=”attributeTypes||objectClasses”)(version 3.0;acl “Modify schema”; allow (write)(userdn = “ldap:///uid=openam,ou=Service Accounts,dc=example,dc=com”);)

ds-cfg-global-aci: target=”ldap:///cn=schema”)(targetscope=”base”)(targetattr=” objectClass||attributeTypes||dITContentRules||dITStructureRules||ldapSyntaxes||matchingRules||matchingRuleUse||nameForms||objectClasses”)(version 3.0; acl “User-Visible Schema Operational Attributes”; allow (read,search,compare) userdn=”ldap:///anyone”;)

ds-cfg-global-aci: (target=”ldap:///dc=replicationchanges”)(targetattr=”*”)(version 3.0; acl “Replication backend access”; deny (all) userdn=”ldap:///anyone”;)

ds-cfg-global-aci: (targetattr!=”userPassword||authPassword||changes||changeNumber||changeType||changeTime||targetDN||newRDN||newSuperior||deleteOldRDN”)(version 3.0; acl “Anonymous read access”; allow (read,search,compare) userdn=”ldap:///anyone”;)

ds-cfg-global-aci: (targetattr=”audio||authPassword||description||displayName||givenName||homePhone||homePostalAddress||initials||jpegPhoto||labeledURI||mobile||pager||postalAddress||postalCode||preferredLanguage||telephoneNumber||userPassword”)(version 3.0; acl “Self entry modification”; allow (write) userdn=”ldap:///self”;)

ds-cfg-global-aci: (targetattr=”createTimestamp||creatorsName||modifiersName||modifyTimestamp||entryDN||entryUUID||subschemaSubentry||etag||governingStructureRule||structuralObjectClass||hasSubordinates||numSubordinates”)(version 3.0; acl “User-Visible Operational Attributes”; allow (read,search,compare) userdn=”ldap:///anyone”;)

ds-cfg-global-aci: (targetattr=”userPassword||authPassword”)(version 3.0; acl “Self entry read”; allow (read,search,compare) userdn=”ldap:///self”;)

ds-cfg-global-aci: (targetcontrol=”1.3.6.1.1.12 || 1.3.6.1.1.13.1 || 1.3.6.1.1.13.2 || 1.2.840.113556.1.4.319 || 1.2.826.0.1.3344810.2.3 || 2.16.840.1.113730.3.4.18 || 2.16.840.1.113730.3.4.9 || 1.2.840.113556.1.4.473 || 1.3.6.1.4.1.42.2.27.9.5.9″) (version 3.0; acl “Authenticated users control access”; allow(read) userdn=”ldap:///all”;)

ds-cfg-global-aci: (targetcontrol=”2.16.840.1.113730.3.4.2 || 2.16.840.1.113730.3.4.17 || 2.16.840.1.113730.3.4.19 || 1.3.6.1.4.1.4203.1.10.2 || 1.3.6.1.4.1.42.2.27.8.5.1 || 2.16.840.1.113730.3.4.16 || 1.2.840.113556.1.4.1413″) (version 3.0; acl “Anonymous control access”; allow(read) userdn=”ldap:///anyone”;)

2.      Entry-Based ACIs:

Access control instructions may also be applied to any entry in the directory server.  This allows fine grained access control to be applied anywhere in the directory information tree and therefore affects the scope of the ACI.

Note:  Placement has a direct effect on the entry where the ACI is applied as well as any children of that entry.

You can obtain a list of all ACIs configured in your server (sans the Global ACIs) by performing the following search:

./ldapsearch –h hostname –p portnumber –D “cn=directory manager” –w “password” –b “dc=example,dc=com” –s sub aci=* aci

By default, there are no ACIs configured at the entry level.  The following is an example of ACIs that might be returned if you did have ACIs configured, however.

dn: dc=example,dc=com

aci: (targetattr=”*”)(version 3.0;acl “Allow entry search”; allow (search,read)(userdn = “ldap:///uid=openam,ou=Service Accounts,dc=example,dc=com”);)

aci: (targetattr=”*”)(version 3.0;acl “Modify config entry”; allow (write)(userdn = “ldap:///uid=openam,ou=Service Accounts,dc=example,dc=com”);)

aci: (targetcontrol=”2.16.840.1.113730.3.4.3″)(version 3.0;acl “Allow persistent search”; allow (search, read)(userdn = “ldap:///uid=openam,ou=Service Accounts,dc=example,dc=com”);)

aci: (version 3.0;acl “Add config entry”; allow (add)(userdn = “ldap:///uid=openam,ou=Service Accounts,dc=example,dc=com”);)

aci: (version 3.0;acl “Delete config entry”; allow (delete)(userdn = “ldap:///uid=openam,ou=Service Accounts,dc=example,dc=com”); )

dn: ou=Applications,dc=example,dc=com

aci: (target =”ldap:///ou=Applications,dc=example,dc=com”)(targetattr=”*”)(version 3.0;acl “Allow Application Config Access to Web UI Admin”; allow (all)(userdn = “ldap:///uid=webui,ou=Applications,dc=example,dc=com”); )

ACI Syntax:

The syntax for access control instructions is not specific to OpenDJ, in fact, for the most part, it shares the same syntax with the Oracle Directory Server Enterprise Edition (“ODSEE”).  This is mainly due the common lineage with Sun Microsystems, but other directory servers do not use the same syntax and this makes migration more difficult (even the schema in both servers contains an attribute called aci).  If you export OpenDJ directory entries to LDIF and attempt to import them into another vendor’s server, the aci statements would either be ignored, or worse, might have unpredictable results, altogether.

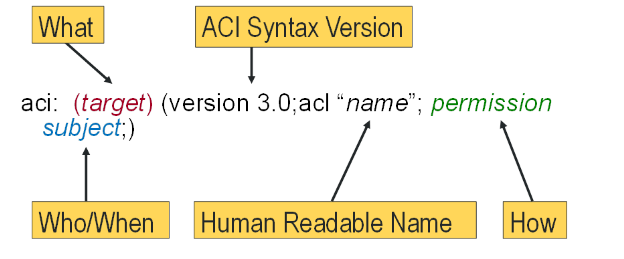

The following syntax is used by the OpenDJ server.



ACISyntax



Access control instructions require three inputs: target, permission, and subject. The target specifies the entries to which the aci applies. The subject applies to the client that is performing the operation and the permissions specify what the subject is allowed to do. You can create some very powerful access control based on these three inputs.

The syntax also includes the version of the aci syntax, version 3.0. This is the aci syntax version, not the LDAP version. Finally, the syntax allows you to enter a human readable name. This allows you to easily search for and identify access control statements in the directory server.

Note:  Refer to the OpenDJ Administration Guide for a more detailed description of the aci A components.

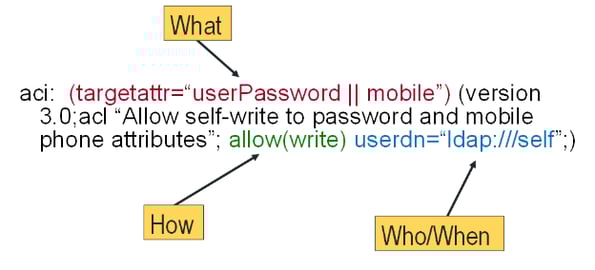

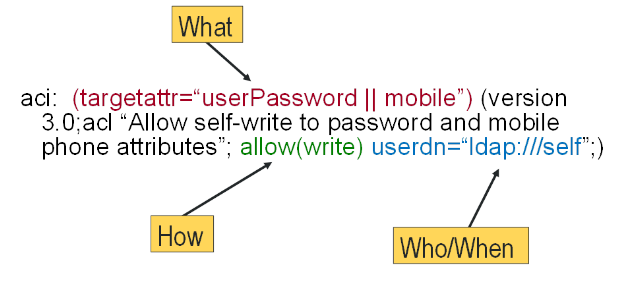

The following is an example of an ACI that permits a user to write to their own password and mobile phone attributes.



SampleACI



You cannot read the ACI from left to right, or even right to left, you simply have to dive right in and look for the information required to understand the intent of the ACI.  If you have been working with ACIs for some time, you probably already have your own process, but I read/interpret the preceding ACI as follows:

This ACI “allows” a user to “write” to their own (“ldap:///self”) userPassword and mobile attributes “(targetattr=”userPassword||mobile”)

If you place this ACI on a particular user’s object (i.e. uid=bnelson, ou=people,dc=example,dc=com), then this ACI would only apply to this object.  If you place this ACI on a container of multiple user objects (i.e. ou=people,dc=example,dc=com), then this ACI would apply to all user objects included in this container.

Access Control Processing:

Access control instructions provide fine-grained control over what a given user or group member is authorized to do within the directory server.

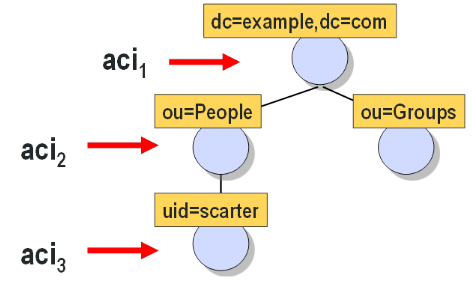

When a directory-enabled client tries to perform an operation on any entry in the server, an access control list (ACL) is created for that particular entry. The ACL for any given entry consists of the entry being accessed as well as any parent entries all the way up to the root entry.



ACIDIT

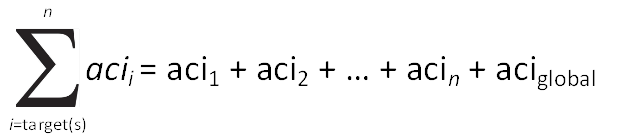

The ACL is essentially the summation of all acis defined for the target(s) being accessed plus the acis for all parent entries all the way to the top of the tree.  Included in this list are any Global ACIs that may have been configured in the cn=config as well.  While not entirely mathematically accurate, the following formula provides an insight into how the ACL is generated.



Summation

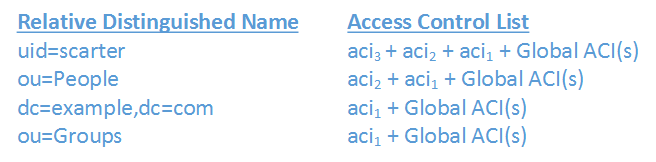

Using the previous formula, the access control lists for each entry in the directory information tree would be as follows:





Once the ACL is created, the list is then processed to determine if the client is allowed to perform the operation or not.  ACLs are processed as follows:

  1. If there exists at least one explicit DENY rule that prevents a user from performing the requested action (i.e. deny(write)), then the user is denied.
  2. If there exists at least one explicit ALLOW rule that allows a user to perform the requested action (i.e. allow(write)), then the user is allowed (as long as there are no other DENY rules preventing this).
  3. If there are neither DENY nor ALLOW rules defined for the requested action, then the user is denied. This is referred to as the implicit deny.

Something to Think About…

smiley_confused Thought 1:  If in the absence of any access control instructions, the default is to deny access, then what is the purpose of access control instructions you might ask?  ACIs with ALLOW rules are used to grant a user permission to perform some action.  Without ALLOW ACIs, all actions are denied (due to the implicit deny rule).Thought 2:  If the default is to implicitly deny a user, then what is the purpose of DENY rules?  DENY rules are used to revoke a previously granted permission.  For instance, suppose that you create an ALLOW rule for the Help Desk Admin group to access a user’s PII data in order to help determine the user’s identity for a password reset.  But you have a recently hired Help Desk Admin that has not completed the required sensitivity training.  You may elect to keep him in the Help Desk Admin group for other reasons, but revoke his ability to read users’ PII data until his training has been completed.Note:  You should use DENY rules sparingly.  If you are creating too many DENY rules you should question how you have created your ALLOW rules.Thought 3:  If the absence of access control instructions means that everyone is denied, then how can we manage OpenDJ in the event that conflicting ACIs are introduced?  Or worse, ACIs are dropped altogether?  That is where the OpenDJ Super User and OpenDJ privileges come in.

OpenDJ’s Super User:

The RootDN user (“cn=Directory Manager” by default) is a special administrative user that can pretty much perform any action in OpenDJ.  This user account is permitted full access to directory server data and can perform almost any action in the directory service, itself.  Essentially, this account is similar to the root or Administrator accounts on UNIX and Windows systems, respectively.

If you look in the directory server you will find that there are no access control instruction granting the RootDN this unrestricted access; but there are however privileges that do so.

Privileges:

While access control instructions restrict access to directory data through LDAP operations, privileges define administrative tasks that may be performed by users within OpenDJ. Assignment of privileges to users (either directly or through groups) effectively allows those users the ability to perform the administrative tasks defined by those privileges.

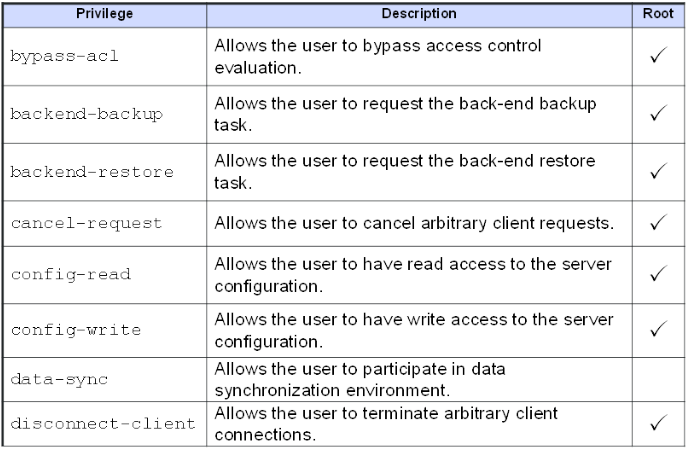

The following table provides a list of common privileges and their relationship to the RootDN user.



DefaultACIs



The RootDN user is assigned these privileges by default and similar to Global ACIs, these privileges are defined and maintained in the OpenDJ configuration object.  The following is the default list of privileges associated with Root DN users (of which the Directory Manager account is a member).

dn: cn=Root DNs,cn=config

objectClass: ds-cfg-root-dn

objectClass: top

ds-cfg-default-root-privilege-name: bypass-lockdown

ds-cfg-default-root-privilege-name: bypass-acl

ds-cfg-default-root-privilege-name: modify-acl

ds-cfg-default-root-privilege-name: config-read

ds-cfg-default-root-privilege-name: config-write

ds-cfg-default-root-privilege-name: ldif-import

ds-cfg-default-root-privilege-name: ldif-export

ds-cfg-default-root-privilege-name: backend-backup

ds-cfg-default-root-privilege-name: backend-restore

ds-cfg-default-root-privilege-name: server-lockdown

ds-cfg-default-root-privilege-name: server-shutdown

ds-cfg-default-root-privilege-name: server-restart

ds-cfg-default-root-privilege-name: disconnect-client

ds-cfg-default-root-privilege-name: cancel-request

ds-cfg-default-root-privilege-name: password-reset

ds-cfg-default-root-privilege-name: update-schema

ds-cfg-default-root-privilege-name: privilege-change

ds-cfg-default-root-privilege-name: unindexed-search

ds-cfg-default-root-privilege-name: subentry-write

cn: Root DNs

This list can retrieved using the OpenDJ dsconfig command:

./dsconfig –h localhost –p 4444 –D “cn=directory manager” –w password get-root-dn-prop

with the ldapsearch command:

./ldapsearch –h hostname –p portnumber –D “cn=directory manager” –w “password” -b “cn=config” -s sub “cn=Root DNs” ds-cfg-default-root-privilege-name

or simply by opening the config.ldif file and locating the entry for the “cn=Root DNs” entry.

Most operations involving sensitive or administrative data require that a user has both the appropriate privilege(s) as well as certain access control instructions.  This allows you to configure authorization at a fine grained level – such as managing access control or resetting passwords.

Privileges are assigned to users and apply globally to the directory service.  Any user can be granted or denied any privilege and by default only the RootDN users are assigned a default set of privileges.

Note:  Consider creating different types of administrative groups in OpenDJ and assign the privileges and ACIs to those groups to define what a group member is allowed to do.  Adding users to that group then automatically grants those users the rights defined in the group and conversely, removing them from the group drops those privileges (unless they are granted through another group).

Effective Rights:

Once you set up a number of ACIs, you may find it difficult to understand how the resulting access control list is processed and ultimately the rights that a particular user may have.  Fortunately OpenDJ provides a method of evaluating the effective rights that a subject has on a given target.

You can use the ldapsearch command to determine the effective rights that a user has on one or more attributes on one or more entries.

$ ldapsearch –h localhost –p 1389 -D “cn=Directory Manager” -w password
-g “dn:uid=helpdeskadmin,ou=administrators, dc=example,dc=com” -b “uid=scarter,ou=people, dc=example,dc=com” -s base ‘(objectclass=*)’ ‘*’ aclrights

The preceding search is being performed by the Root DN user (“cn=Directory Manager”).  It is passing the –g option requesting the get effective rights control (to which the Directory Manager has the appropriate access configured). The command wants to determine what rights the Help Desk Administrator (uid=helpdeskadmin,…) has on Sam Carter’s entry (uid=scarter,…).  The scope of the search has been limited only to Sam Carter’s entry using the base parameter.  Finally, the search operation is returning not only the attributes, but the effective rights (aclrights) as well.

Possible results from a search operation such as this are as follows:

dn: uid=scarter,ou=People,dc=example,dc=com

objectClass: person

objectClass: top

uid: scarter

userPassword: {SSHA}iMgzz9mFA6qYtkhS0Z7bhQRnv2Ic8efqpctKDQ==

givenName: Sam

cn: Sam Carter

sn: Carter

mail: sam.carter@example.com

aclRights;attributeLevel;objectclass: search:1,read:1,compare:1,write:0,selfwrit

e_add:0,selfwrite_delete:0,proxy:0

aclRights;attributeLevel;uid: search:1,read:1,compare:1,write:0,selfwrite_add:0,

selfwrite_delete:0,proxy:0

aclRights;attributeLevel;userpassword: search:0,read:0,compare:0,write:1,selfwri

te_add:0,selfwrite_delete:0,proxy:0

aclRights;attributeLevel;givenname: search:1,read:1,compare:1,write:0,selfwrite_

add:0,selfwrite_delete:0,proxy:0

aclRights;attributeLevel;cn: search:1,read:1,compare:1,write:0,selfwrite_add:0,s

elfwrite_delete:0,proxy:0

aclRights;attributeLevel;sn: search:1,read:1,compare:1,write:0,selfwrite_add:0,s

elfwrite_delete:0,proxy:0

aclRights;attributeLevel;mail: search:1,read:1,compare:1,write:0,selfwrite_add:0

,selfwrite_delete:0,proxy:0

aclRights;entryLevel: add:0,delete:0,read:1,write:0,proxy:0

The search results contain not only the attributes/attribute values associated with Sam Carter’s object, but the effective rights that the Help Desk Admins have on those attributes.  For instance,

aclRights;attributeLevel;givenname: search:1,read:1,compare:1,write:0,selfwrite_

add:0,selfwrite_delete:0,proxy:0

The aclRights;attributeLevel;givenname notation indicate that this line includes the effective rights for the givenname attribute.  Individual permissions are listed that demonstrate the rights that the Help Desk Administrator has on this attribute for Sam Carter’s entry (1 = allowed and 0 = denied).

Recommendations:

An OpenDJ installation includes a set of default (Global) access control instructions which by some standards may be considered insecure.  For instance, there are five ACIs that allow an anonymous user the ability to read certain controls, extended operations, operational attributes, schema attributes, and user attributes.  The basic premise behind this is that ForgeRock wanted to provide an easy out-of-the-box evaluation of the product while at the same time providing a path forward for securing the product.  It is intended that OpenDJ should be hardened in order to meet a company’s security policies and in fact, one task that is typically performed before placing OpenDJ in production is to limit anonymous access.  There are two ways you can perform this:

  1. Enable the reject-unauthenticated-request property using the dsconfig command.
  2. Update the Global ACIs

Mark Craig provides a nice blog posting on how to turn off anonymous access using the dsconfig command.  You can find that blog here.  The other option is to simply change the reference in the Global ACIs from ldap:///anyone to ldap:///all.  This prevents anonymous users from gaining access to this information.

Note:  Use of ldap:///anyone in an ACI includes both authenticated and anonymous users – essentially, anyone.  Changing this to ldap:///all restricts the subject to all authenticated users.

The following comments from Ludo Poitou (ForgeRock’s OpenDJ Product Manager) should be considered before simply removing anonymous access.

You don’t want to remove the ACI rules for Anonymous access, you want to change it from granting access to anyone (ldap:///anyone) to granting access to all authenticated users (ldap:///all).

This said, there are some differences between fully rejecting unauthenticated requests and using ACI to control access. The former will block all access including the attempts to discover the server’s capabilities by reading the RootDSE. The later allows you to control which parts can be accessed anonymously, and which shouldn’t.

There’s been a lot of fuss around allowing anonymous access to a directory service. Some people are saying that features and naming context discovery is a threat to security, allowing malicious users to understand what the server contains and what security mechanisms are available and therefore not available. At the same time, it is important for generic purpose applications to understand how they can or must use the directory service before they actually authenticate to it.

Fortunately, OpenDJ has mechanisms that allow administrators to configure the directory services according to their security constraints, using either a simple flag to reject all unauthenticated requests, or by using ACIs.

A few other things to consider when configuring access control in OpenDJ include the following:

  1. Limit the number of Root DN user accounts

You should have one Root DN account and it should not be shared with multiple administrators.  Doing so makes it nearly impossible to determine the identity of the person who performed a configuration change or operation in OpenDJ.  Instead, make the password complex and store it in a password vault.

  1. Create a delegated administration environment

Now that you have limited the number of Root DN accounts, you need to create groups to allow users administrative rights in OpenDJ.  Users would then log in as themselves and perform operations against the directory server using their own account.  The tasks associated with this are as follows:

  • Create administrative groups
  • Use the ds-privilege-name attribute to assign privilege(s) to the group entry
  • Create ACIs based on the group name, not an individual user.  For instance, “groupdn:///cn=Help Desk Admin, ou=Administrators,dc=example,dc=com”
  • Add users to the groups
  1. Associate privileges and ACIs to users for fine grained access control

Now that you have create administrative groups, you are ultimately going to need to provide certain users with more rights than others.  You can create additional administrative groups, but what if you only need one user to have these rights.  Creating a group of one may or may not be advisable and may actually lead to group explosion (where you end up with more groups than you actually have users).  Instead, consider associating privileges to a particular user and then create ACIs based on that user.
